Encapsulated transformers 20VA

T40/E
Encapsulated transformers

You are in: Transformers » Encapsulated

20VA

Encapsulated transformers EI60/21
EI60/21

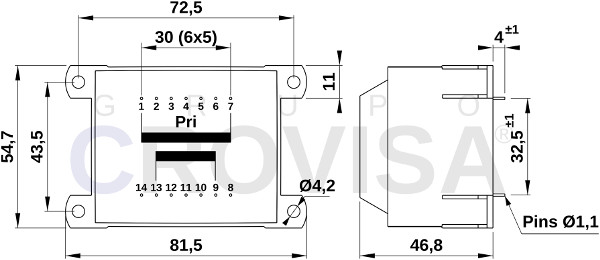

Dimensions (mm)
Aprox. Weight: 0,570 Kg
115V
Article Technical data Pri. Fuse
30506020 6V 3,33A 250mA
30507020 7,5V 2,66A 250mA
30509020 9V 2,22A 250mA
30512020 12V 1,66A 250mA
30515020 15V 1,33A 250mA
30518020 18V 1,11A 250mA
30524020 24V 0,83A 250mA

Encapsulated transformers EI60/21
EI60/21
Dimensions (mm)
Aprox. Weight: 0,570 Kg
230V
Article Technical data Pri. Fuse
406020 6V 3,33A 125mA
407020 7,5V 2,66A 125mA
409020 9V 2,22A 125mA
412020 12V 1,66A 125mA
415020 15V 1,33A 125mA
418020 18V 1,11A 125mA
424020 24V 0,83A 125mA

Encapsulated transformers EI60/21
EI60/21

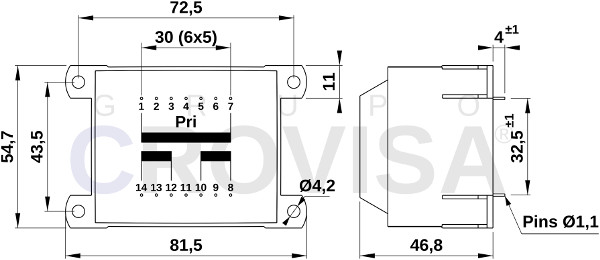

Dimensions (mm)
Aprox. Weight: 0,570 Kg
115V
Article Technical data Sec. Fuse
30606020 2x6V 2x1,66A 2x1,60A
30607020 2x7,5V 2x1,33A 2x1,25A
30609020 2x9V 2x1,11A 2x1,00A
30612020 2x12V 2x0,830A 2x800mA
30615020 2x15V 2x0,666A 2x630mA
30618020 2x18V 2x0,555A 2x500mA
30624020 2x24V 2x0,416A 2x400mA

Encapsulated transformers EI60/21
EI60/21
Dimensions (mm)
Aprox. Weight: 0,570 Kg
230V
Article Technical data Sec. Fuse
606020 2x6V 2x1,66A 2x1,60A
607020 2x7,5V 2x1,33A 2x1,25A
609020 2x9V 2x1,11A 2x1,00A
612020 2x12V 2x0,830A 2x800mA
615020 2x15V 2x0,666A 2x630mA
618020 2x18V 2x0,555A 2x500mA
624020 2x24V 2x0,416A 2x400mA
