Open type transformers of 1VA, 3VA, 5VA and 10VA

Open-type transformers

You are in: Transformers » Open frame

1VA
Laminated open type/frame transformers 1,5VA
Dimensions (mm)
220V
Article Technical data
809B915 2x6V 2x0,125A
810B915 2x9V 2x0,083A
811B915 2x12V 2x0,062A
812B915 2x15V 2x0,050A
813B915 2x18V 2x0,041A
814B915 2x24V 2x0,031A

3VA
Laminated open type/frame transformers 3VA
Dimensions (mm)
220V
Article Technical data
403B003 2x6V 2x0,250A
515B003 2x9V 2x0,125A
402B003 2x12V 2x0,100A
401B003 2x15V 2x0,083A
555B003 2x18V 2x0,083A
400B003 2x24V 2x0,062A

5VA

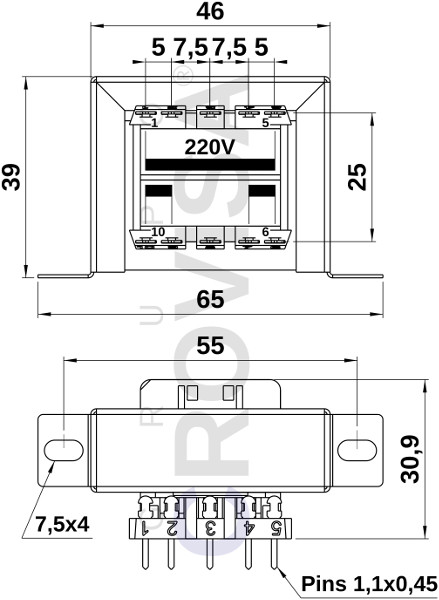

Laminated open type/frame transformers 5VA
Dimensions (mm)
220V
Article Technical data
399B005 2x6V 2x0,416A
398B005 2x9V 2x0,277A
397B005 2x12V 2x0,208A
556B005 2x15V 2x0,166A
557B005 2x18V 2x0,138A
558B005 2x24V 2x0,104A

10VA
Laminated open type/frame transformers 10VA
Dimensions (mm)
220V
Article Technical data
396B010 2x6V 2x0,833A
516B010 2x9V 2x0,555A
395B010 2x12V 2x0,416A
559B010 2x15V 2x0,333A
560B010 2x18V 2x0,277A
561B010 2x24V 2x0,208A


Next: Transformers » Open type » 16VA, 20VA, 30VA and 46VA
