ES0.6VA encpasulated transformers.
T40/E
Encapsulated transformers
You are in: Transformers » Encapsulated
0,6VA
Short circuit proof
| 115V | ||
|---|---|---|
| Article | Output | |
| 30506906 | 6V | 0,100A |
| 30507906 | 7,5V | 0,080A |
| 30509906 | 9V | 0,066A |
| 30512906 | 12V | 0,050A |
| 30515906 | 15V | 0,040A |
| 30518906 | 18V | 0,033A |
| 30524906 | 24V | 0,025A |
×
![]()
EI30/5

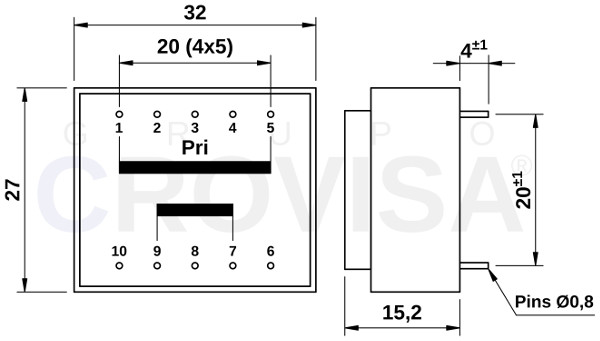

Dimensions (mm)
Aprox. Weight: 0,040 Kg
Dimensions (mm)
Aprox. Weight: 0,040 Kg
| 230V | ||
|---|---|---|
| Article | Output | |
| 406906 | 6V | 0,100A |
| 407906 | 7,5V | 0,080A |
| 409906 | 9V | 0,066A |
| 412906 | 12V | 0,050A |
| 415906 | 15V | 0,040A |
| 418906 | 18V | 0,033A |
| 424906 | 24V | 0,025A |
| 115V | ||
|---|---|---|
| Article | Output | |
| 30606906 | 2x6V | 2x0,050A |
| 30607906 | 2x7,5V | 2x0,040A |
| 30609906 | 2x9V | 2x0,033A |
| 30612906 | 2x12V | 2x0,025A |
| 30615906 | 2x15V | 2x0,020A |
| 30618906 | 2x18V | 2x0,016A |
| 30624906 | 2x24V | 2x0,012A |
EI30/5

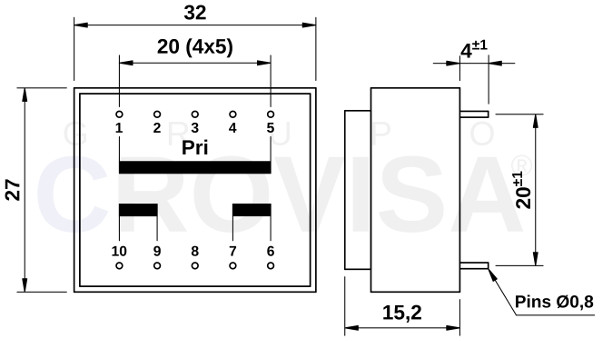

Dimensions (mm)
Aprox. Weight: 0,040 Kg
Dimensions (mm)
Aprox. Weight: 0,040 Kg
| 230V | ||
|---|---|---|
| Article | Output | |
| 606906 | 2x6V | 2x0,050A |
| 607906 | 2x7,5V | 2x0,040A |
| 609906 | 2x9V | 2x0,033A |
| 612906 | 2x12V | 2x0,025A |
| 615906 | 2x15V | 2x0,020A |
| 618906 | 2x18V | 2x0,016A |
| 624906 | 2x24V | 2x0,012A |
Download the PDF Catalogue of encapsulated transformers
All technical data, weights, measurements, etc. which appear in our catalog are indicative, and may be modified without prior notice.
