ES10VA ta70 encapsulated transformer.
T70/E
Encapsulated transformers
You are in: Transformers » Encapsulated
10VA
| 115V | |||
|---|---|---|---|
| Article | Output | Sec.Fuse | |
| 30806010 | 6V | 1,666A | 125mA |
| 30807010 | 7,5V | 1,333A | 125mA |
| 30809010 | 9V | 1,111A | 125mA |
| 30812010 | 12V | 0,833A | 125mA |
| 30815010 | 15V | 0,666A | 125mA |
| 30818010 | 18V | 0,555A | 125mA |
| 30824010 | 24V | 0,416A | 125mA |
×
![]()
EI48/20

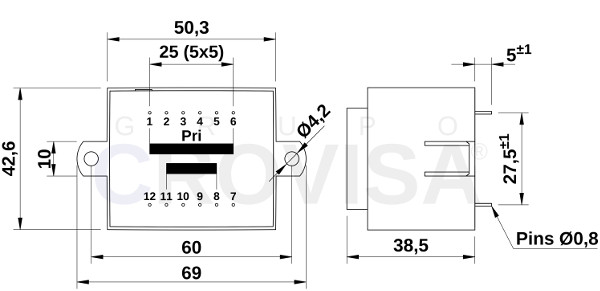

Dimensions (mm)
Aprox. Weight: 0,340 Kg
Dimensions (mm)
Aprox. Weight: 0,340 Kg
| 230V | |||
|---|---|---|---|
| Article | Output | Sec.Fuse | |
| 30306010 | 6V | 1,666A | 63mA |
| 30307010 | 7,5V | 1,333A | 63mA |
| 30309010 | 9V | 1,111A | 63mA |
| 30312010 | 12V | 0,833A | 63mA |
| 30315010 | 15V | 0,666A | 63mA |
| 30318010 | 18V | 0,555A | 63mA |
| 30324010 | 24V | 0,416A | 63mA |
| 115V | |||
|---|---|---|---|
| Article | Output | Sec.Fuse | |
| 30906010 | 2x6V | 2x0,833A | 2x800mA |
| 30907010 | 2x7,5V | 2x0,666A | 2x630mA |
| 30909010 | 2x9V | 2x0,555A | 2x500mA |
| 30912010 | 2x12V | 2x0,416A | 2x400mA |
| 30915010 | 2x15V | 2x0,333A | 2x315mA |
| 30918010 | 2x18V | 2x0,277A | 2x250mA |
| 30924010 | 2x24V | 2x0,208A | 2x200mA |
EI48/20

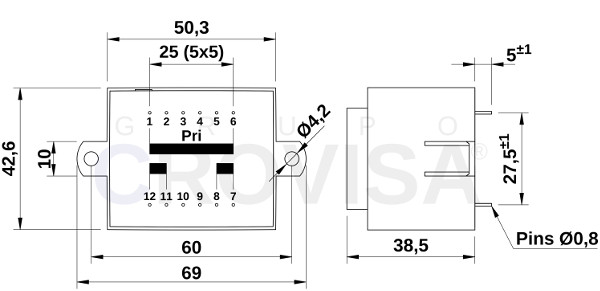

Dimensions (mm)
Aprox. Weight: 0,340 Kg
Dimensions (mm)
Aprox. Weight: 0,340 Kg
| 230V | |||
|---|---|---|---|
| Article | Output | Sec.Fuse | |
| 30406010 | 2x6V | 2x0,833A | 2x800mA |
| 30407010 | 2x7,5V | 2x0,666A | 2x630mA |
| 30409010 | 2x9V | 2x0,555A | 2x500mA |
| 30412010 | 2x12V | 2x0,416A | 2x400mA |
| 30415010 | 2x15V | 2x0,333A | 2x315mA |
| 30418010 | 2x18V | 2x0,277A | 2x250mA |
| 30424010 | 2x24V | 2x0,208A | 2x200mA |
Download the PDF Catalogue of encapsulated transformers
All technical data, weights, measurements, etc. which appear in our catalog are indicative, and may be modified without prior notice.
