ES5VA encapsulated transformer.
T40/E
Encapsulated transformers
You are in: Transformers » Encapsulated
5VA
| 115V | |||
|---|---|---|---|
| Article | Output | Sec.Fuse | |
| 30506005 | 6V | 0,833 | 63mA |
| 30507005 | 7,5V | 0,666A | 63mA |
| 30509005 | 9V | 0,555A | 63mA |
| 30512005 | 12V | 0,416A | 63mA |
| 30515005 | 15V | 0,333A | 63mA |
| 30518005 | 18V | 0,277A | 63mA |
| 30524005 | 24V | 0,208A | 63mA |
×
![]()
EI42/14,9
Dimensions (mm)
Aprox. Weight: 0,200 Kg
Dimensions (mm)
Aprox. Weight: 0,200 Kg
| 230V | |||
|---|---|---|---|
| Article | Output | Sec.Fuse | |
| 406005 | 6V | 0,833 | 32mA |
| 407005 | 7,5V | 0,666A | 32mA |
| 409005 | 9V | 0,555A | 32mA |
| 412005 | 12V | 0,416A | 32mA |
| 415005 | 15V | 0,333A | 32mA |
| 418005 | 18V | 0,277A | 32mA |
| 424005 | 24V | 0,208A | 32mA |
| 115V | |||
|---|---|---|---|
| Article | Output | Sec.Fuse | |
| 30706005 | 6+6V | 0,416A | 400mA |
| 30707005 | 7,5+7,5V | 0,333A | 315mA |
| 30709005 | 9+9V | 0,277A | 250mA |
| 30712005 | 12+12V | 0,208A | 200mA |
| 30715005 | 15+15V | 0,166A | 160mA |
| 30718005 | 18+18V | 0,138A | 125mA |
| 30724005 | 24+24V | 0,104A | 100mA |

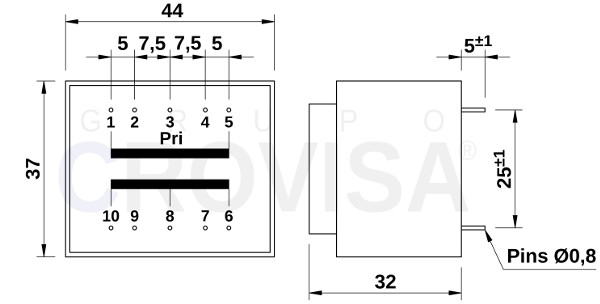

EI42/14,9
Dimensions (mm)
Aprox. Weight: 0,200 Kg
Dimensions (mm)
Aprox. Weight: 0,200 Kg
| 230V | |||
|---|---|---|---|
| Article | Output | Sec.Fuse | |
| 506005 | 6+6V | 0,416A | 400mA |
| 507005 | 7,5+7,5V | 0,333A | 315mA |
| 509005 | 9+9V | 0,277A | 250mA |
| 512005 | 12+12V | 0,208A | 200mA |
| 515005 | 15+15V | 0,166A | 160mA |
| 518005 | 18+18V | 0,138A | 125mA |
| 524005 | 24+24V | 0,104A | 100mA |
| 115V | |||
|---|---|---|---|
| Article | Output | Sec.Fuse | |
| 30606005 | 2x6V | 2x0,416A | 2x400mA |
| 30607005 | 2x7,5V | 2x0,333A | 2x315mA |
| 30609005 | 2x9V | 2x0,277A | 2x250mA |
| 30612005 | 2x12V | 2x0,208A | 2x200mA |
| 30615005 | 2x15V | 2x0,166A | 2x160mA |
| 30618005 | 2x18V | 2x0,138A | 2x125mA |
| 30624005 | 2x24V | 2x0,104A | 2x100mA |
EI42/14,9
Dimensions (mm)
Aprox. Weight: 0,200 Kg
Dimensions (mm)
Aprox. Weight: 0,200 Kg
| 230V | |||
|---|---|---|---|
| Article | Output | Sec.Fuse | |
| 606005 | 2x6V | 2x0,416A | 2x400mA |
| 607005 | 2x7,5V | 2x0,333A | 2x315mA |
| 609005 | 2x9V | 2x0,277A | 2x250mA |
| 612005 | 2x12V | 2x0,208A | 2x200mA |
| 615005 | 2x15V | 2x0,166A | 2x160mA |
| 618005 | 2x18V | 2x0,138A | 2x125mA |
| 624005 | 2x24V | 2x0,104A | 2x100mA |
Download the PDF Catalogue of encapsulated transformers
All technical data, weights, measurements, etc. which appear in our catalog are indicative, and may be modified without prior notice.
