ES12VA encapsulated transformer.
T40/E
Encapsulated transformers
You are in: Transformers » Encapsulated
12VA
| 115V | |||
|---|---|---|---|
| Article | Output | Sec.Fuse | |
| 31006012 | 6V | 2,000A | 160mA |
| 31007012 | 7,5V | 1,600A | 160mA |
| 31009012 | 9V | 1,333A | 160mA |
| 31012012 | 12V | 1,000A | 160mA |
| 31015012 | 15V | 0,800A | 160mA |
| 31018012 | 18V | 0,666A | 160mA |
| 31024012 | 24V | 0,500A | 160mA |
×
![]()
EI48/20

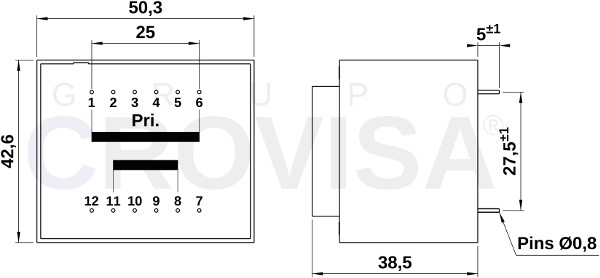

Dimensions (mm)
Aprox. Weight: 0,340 Kg
Dimensions (mm)
Aprox. Weight: 0,340 Kg
| 230V | |||
|---|---|---|---|
| Article | Output | Sec.Fuse | |
| 30006012 | 6V | 2,000 | 80mA |
| 30007012 | 7,5V | 1,600A | 80mA |
| 30009012 | 9V | 1,333A | 80mA |
| 30012012 | 12V | 1,000A | 80mA |
| 30015012 | 15V | 0,800A | 80mA |
| 30018012 | 18V | 0,666A | 80mA |
| 30024012 | 24V | 0,500A | 80mA |
| 115V | |||
|---|---|---|---|
| Article | Output | Sec.Fuse | |
| 31106012 | 6+6V | 1,000A | 1,00A |
| 31107012 | 7,5+7,5V | 0,800A | 800mA |
| 31109012 | 9+9V | 0,666A | 630mA |
| 31112012 | 12+12V | 0,500A | 500mA |
| 31115012 | 15+15V | 0,400A | 400mA |
| 31118012 | 18+18V | 0,333A | 315mA |
| 31124012 | 24+24V | 0,250A | 250mA |
EI48/20

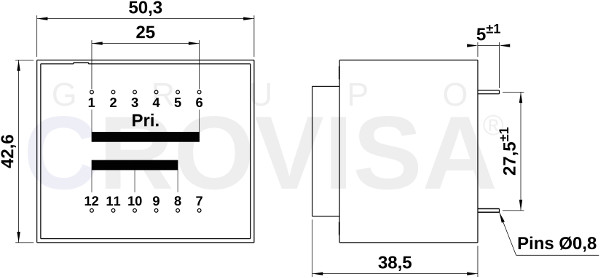

Dimensions (mm)
Aprox. Weight: 0,340 Kg
Dimensions (mm)
Aprox. Weight: 0,340 Kg
| 230V | |||
|---|---|---|---|
| Article | Output | Sec.Fuse | |
| 30106012 | 6+6V | 1,000A | 1,00A |
| 30107012 | 7,5+7,5V | 0,800A | 800mA |
| 30109012 | 9+9V | 0,666A | 630mA |
| 30112012 | 12+12V | 0,500A | 500mA |
| 30115012 | 15+15V | 0,400A | 400mA |
| 30118012 | 18+18V | 0,333A | 315mA |
| 30124012 | 24+24V | 0,250A | 250mA |
| 115V | |||
|---|---|---|---|
| Article | Output | Sec.Fuse | |
| 31206012 | 2x6V | 2x1,000A | 2x1,00A |
| 31207012 | 2x7,5V | 2x0,800A | 2x800mA |
| 31209012 | 2x9V | 2x0,666A | 2x630mA |
| 31212012 | 2x12V | 2x0,500A | 2x500mA |
| 31215012 | 2x15V | 2x0,400A | 2x400mA |
| 31218012 | 2x18V | 2x0,333A | 2x315mA |
| 31224012 | 2x24V | 2x0,250A | 2x250mA |
EI48/20
Dimensions (mm)
Aprox. Weight: 0,340 Kg
Dimensions (mm)
Aprox. Weight: 0,340 Kg
| 230V | |||
|---|---|---|---|
| Article | Output | Sec.Fuse | |
| 30206012 | 2x6V | 2x1,000A | 2x1,00A |
| 30207012 | 2x7,5V | 2x0,800A | 2x800mA |
| 30209012 | 2x9V | 2x0,666A | 2x630mA |
| 30212012 | 2x12V | 2x0,500A | 2x500mA |
| 30215012 | 2x15V | 2x0,400A | 2x400mA |
| 30218012 | 2x18V | 2x0,333A | 2x315mA |
| 30224012 | 2x24V | 2x0,250A | 2x250mA |
Download the PDF Catalogue of encapsulated transformers
All technical data, weights, measurements, etc. which appear in our catalog are indicative, and may be modified without prior notice.
