ES2.3VA ta70 Encapsulated transformers.
T70/E
Encapsulated transformers
You are in: Transformers » Encapsulated
2,3VA
Short circuit proof
| 115V | ||
|---|---|---|
| Article | Output | |
| 30806923 | 6V | 0,383A |
| 30807923 | 7,5V | 0,307A |
| 30809923 | 9V | 0,256A |
| 30812923 | 12V | 0,192A |
| 30815923 | 15V | 0,153A |
| 30818923 | 18V | 0,128A |
| 30824923 | 24V | 0,096A |
×
![]()
EI30/18

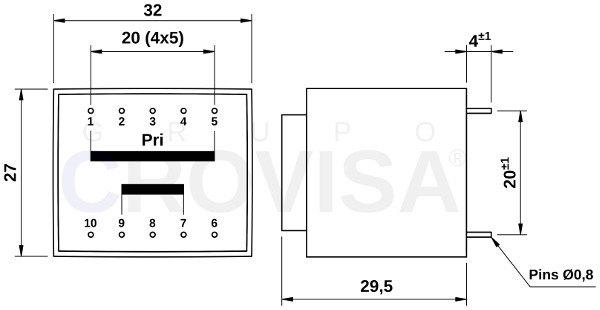

Dimensions (mm)
Aprox. Weight: 0,113 Kg
Dimensions (mm)
Aprox. Weight: 0,113 Kg
| 230V | ||
|---|---|---|
| Article | Output | |
| 30306923 | 6V | 0,383A |
| 30307923 | 7,5V | 0,307A |
| 30309923 | 9V | 0,256A |
| 30312923 | 12V | 0,192A |
| 30315923 | 15V | 0,153A |
| 30318923 | 18V | 0,128A |
| 30324923 | 24V | 0,096A |
| 115V | ||
|---|---|---|
| Article | Output | |
| 30906923 | 2x6V | 2x0,192A |
| 30907923 | 2x7,5V | 2x0,153A |
| 30909923 | 2x9V | 2x0,128A |
| 30912923 | 2x12V | 2x0,096A |
| 30915923 | 2x15V | 2x0,077A |
| 30918923 | 2x18V | 2x0,064A |
| 30924923 | 2x24V | 2x0,048A |
EI30/18

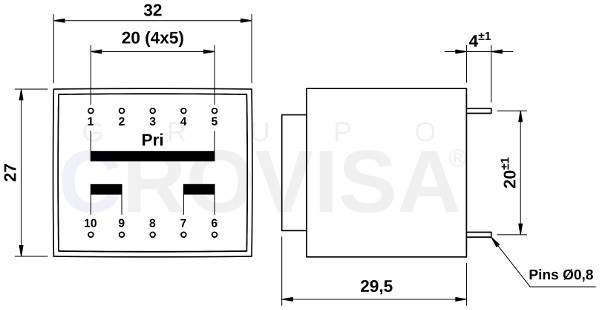

Dimensions (mm)
Aprox. Weight: 0,113 Kg
Dimensions (mm)
Aprox. Weight: 0,113 Kg
| 230V | ||
|---|---|---|
| Article | Output | |
| 30406923 | 2x6V | 2x0,192A |
| 30407923 | 2x7,5V | 2x0,153A |
| 30409923 | 2x9V | 2x0,128A |
| 30412923 | 2x12V | 2x0,096A |
| 30415923 | 2x15V | 2x0,077A |
| 30418923 | 2x18V | 2x0,064A |
| 30424923 | 2x24V | 2x0,048A |
Download the PDF Catalogue of encapsulated transformers
All technical data, weights, measurements, etc. which appear in our catalog are indicative, and may be modified without prior notice.
