ES8VA ta70 encapsulated transformers.
T70/E
Encapsulated transformers
You are in: Transformers » Encapsulated
8VA
| 115V | |||
|---|---|---|---|
| Article | Output | Sec.Fuse | |
| 30806008 | 6V | 1,333A | 100mA |
| 30807008 | 7,5V | 1,067A | 100mA |
| 30809008 | 9V | 0,889A | 100mA |
| 30812008 | 12V | 0,667A | 100mA |
| 30815008 | 15V | 0,533A | 100mA |
| 30818008 | 18V | 0,444A | 100mA |
| 30824008 | 24V | 0,333A | 100mA |
×
![]()
EI48/17

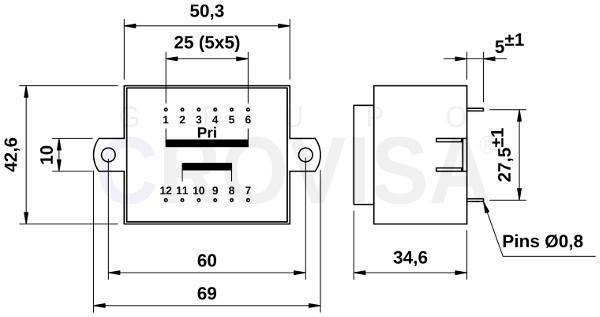

Dimensions (mm)
Aprox. Weight: 0,300 Kg
Dimensions (mm)
Aprox. Weight: 0,300 Kg
| 230V | |||
|---|---|---|---|
| Article | Output | Sec.Fuse | |
| 30306008 | 6V | 1,333A | 50mA |
| 30307008 | 7,5V | 1,067A | 50mA |
| 30309008 | 9V | 0,889A | 50mA |
| 30312008 | 12V | 0,667A | 50mA |
| 30315008 | 15V | 0,533A | 50mA |
| 30318008 | 18V | 0,444A | 50mA |
| 30324008 | 24V | 0,333A | 50mA |
| 115V | |||
|---|---|---|---|
| Article | Output | Sec.Fuse | |
| 30906008 | 2x6V | 2x0,667A | 2x630mA |
| 30907008 | 2x7,5V | 2x0,533A | 2x630mA |
| 30909008 | 2x9V | 2x0,444A | 2x500mA |
| 30912008 | 2x12V | 2x0,333A | 2x400mA |
| 30915008 | 2x15V | 2x0,267A | 2x315mA |
| 30918008 | 2x18V | 2x0,222A | 2x250mA |
| 30924008 | 2x24V | 2x0,167A | 2x200mA |
EI48/17
Dimensions (mm)
Aprox. Weight: 0,300 Kg
Dimensions (mm)
Aprox. Weight: 0,300 Kg
| 230V | |||
|---|---|---|---|
| Article | Output | Sec.Fuse | |
| 30406008 | 2x6V | 2x0,667A | 2x630mA |
| 30407008 | 2x7,5V | 2x0,5336A | 2x500mA |
| 30409008 | 2x9V | 2x0,444A | 2x400mA |
| 30412008 | 2x12V | 2x0,333A | 2x315mA |
| 30415008 | 2x15V | 2x0,267A | 2x250mA |
| 30418008 | 2x18V | 2x0,222A | 2x200mA |
| 30424008 | 2x24V | 2x0,167A | 2x160mA |
Download the PDF Catalogue of encapsulated transformers
All technical data, weights, measurements, etc. which appear in our catalog are indicative, and may be modified without prior notice.
